室内固装系列 KS Plus

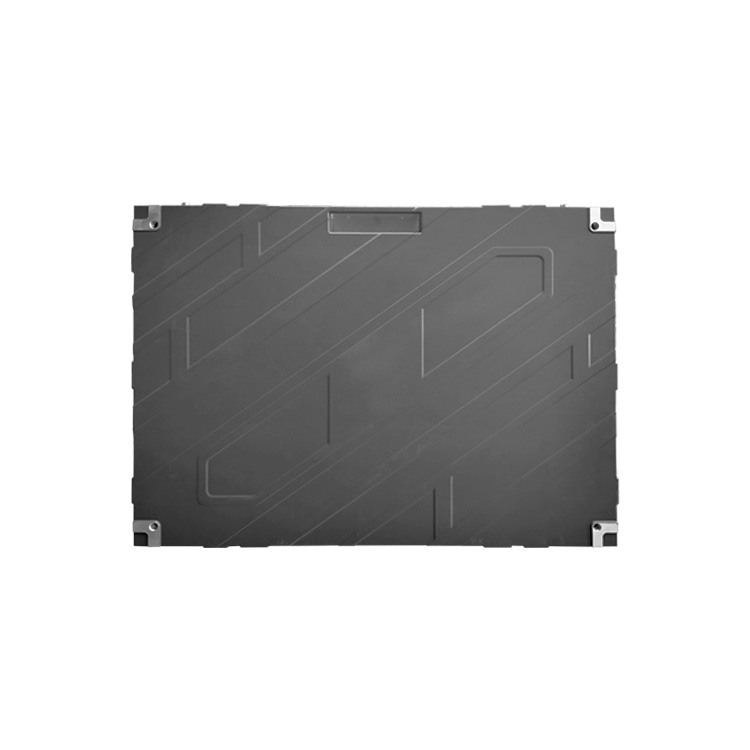

KS-Plus Series- Small pitch Cabinet, with magnetic pre-maintenance, ultra-light, ultra-thin design, weight only 4.3KG, disassembly and maintenance only 20 seconds, IP level 30, high brightness, high contrast, 160 ° large viewing angle, extremely Jane

Product advantages:

The weight of the box is 40% lighter than the traditional iron box, which saves a lot of cost
Anti-knock design to avoid damage to the module, reduce maintenance and improve work efficiency
Maintain the suction cup tool before use, suck the module (the iron plate is installed on the back of the module), easy to disassemble and assemble
High brightness, high contrast

Get A Quote

Product Series Model


P1.5

P1.8

P2

P2.5

P3

Technical Parameters

室内固装系列 KS Plus

  Indoor
Pixel Pitch P1.2 P1.579 P1.875 P2.5 P3
LED lamp SMD1515 SMD1515 SMD1515 SMD2020 SMD2020
Density 695556dots/m2 401111dots/m2 284444dots/m2 160000dots/m2 111111dots/m2
Brightness 500nits 600nits 800nits 900nits 900nits
IP rating IP40 IP40 IP40 IP40 IP40
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 1/31 scan 1/24 scan 1/32 scan 1/32 scan 1/20 scan
Module weight 0.3kg 0.3kg 0.3kg 0.3kg 0.3kg
Cabinet Weight 5.5kg 5.5kg 5.5kg 5.5kg 5.5kg
Module size 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Cabinet size 640*480*85mm 640*480*85mm 640*480*85mm 640*480*85mm 640*480*85mm
Module pixel 266*134dots 202*101dots 170*85dots 128*64dots 106*53dots
Cabinet pixel 534*400dots 405*304dots 341*256dots 256*192dots 213*160dots
Max Power 500w/sqm 500w/sqm 550w/sqm 550w/sqm 550w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm 200w/sqm 200w/sqm
Viewing Angle Horizontal 140(+70/-70) deg     Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃
