舞美租赁系列 I

I series can be flexibly applied to different installation requirements of leasing; it is easy to install, use, maintain and saves time; The screen has high refresh frequency, vivid color, strong adaptability, windproof, and waterproof.

light weight, simple and fast installation;
using die-cast aluminum material, high strength, toughness, high precision, not easy to deformation;
new structural design, to meet lifting, stacking requirements, to meet indoor and outdoor requirements;

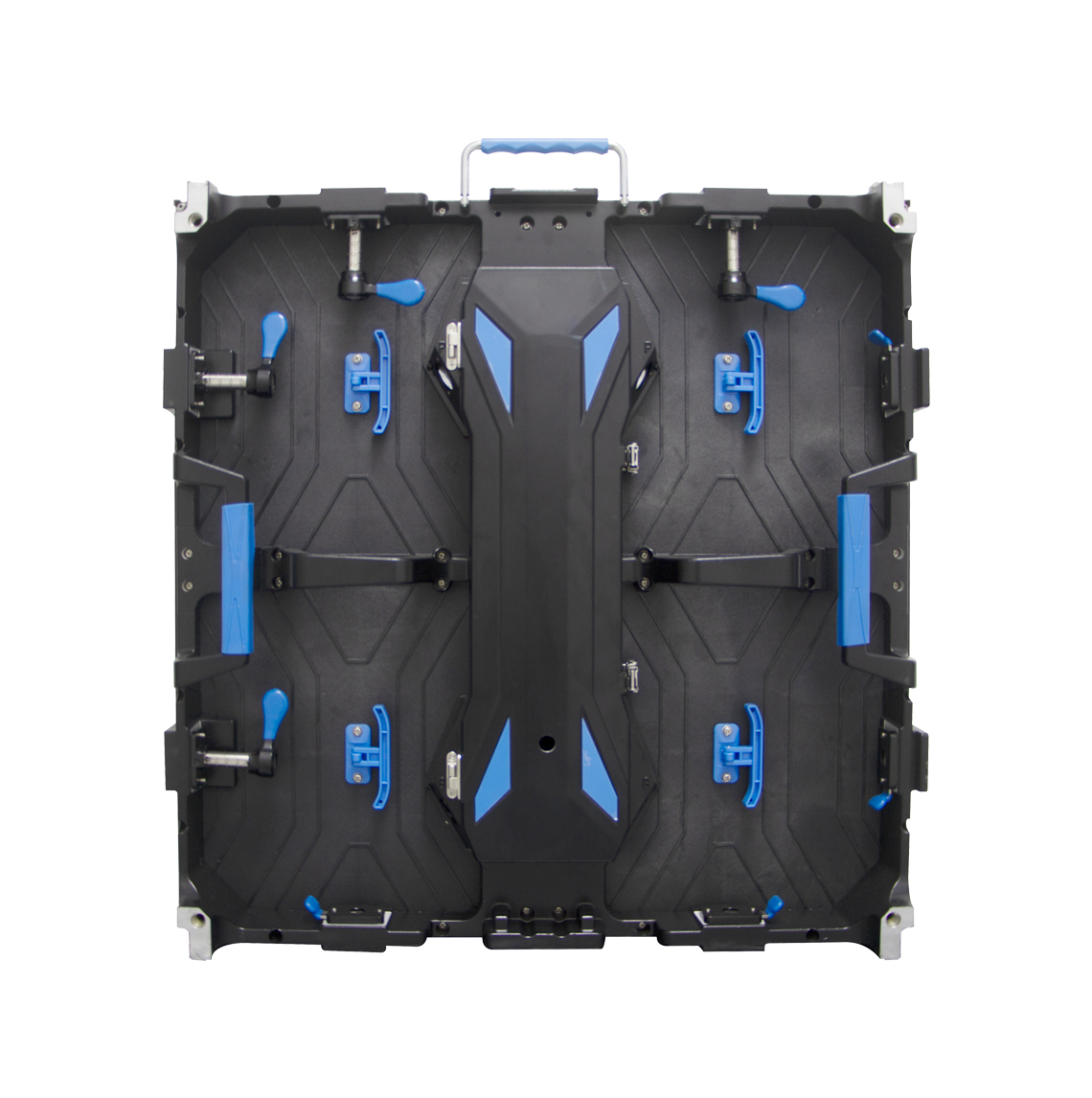

the connection of the cabinet uses the fast lock mechanism, 10 seconds can complete the installation of a cabinet, the installation precision is high;
the intensity hardness is high, the heat dissipation effect is good;
the cabinet weight is light, the installation cost is low; the cabinet power consumption is low, saves the operation cost, reduce labor costs.

Get A Quote

Product Series Model


P3

P3.8

P4.8

Technical Parameters

舞美租赁系列 I

 IndoorOutdoor
Pixel Pitch 3 3.84 4.8 3.84 4.8
LED lamp SMD2020 SMD2020 SMD2020 SMD1921 SMD1921
Density 111111dot/m2 67817dots/m2 43403dots/m2 67817 dots/m2 43403dots/m2
Brightness 800-1000nits 800-1000nits 800-1000nits 3500nits 3000-3500nits
IP rating IP31 IP31 IP31 IP65 IP65
Cabinet Materiel Die-casting Aluminum Die-casting Aluminum
Scan 32scan 25scan 10-15scan 15scan 10-15scan
Module weight 1kg 1kg 1kg 1.5kg 1.5kg
Cabinet Weight 8.5kg 8.5kg 8.5kg 9.25kg 9.25kg
Module size 288*288mm 288*288mm 288*288mm 288*288mm 288*288mm
Cabinet size 576*576*85mm 576*576*85mm 576*576*85mm 576*576*85mm 576*576*85mm
Module pixel 96*96dots 75*75dots 60*60dots 75*75dots 60*60dots
Cabinet pixel 192*192dots 150*150dots 120*120dots 150*150dots 120*120dots
Max Power 500w/sqm 500w/sqm 500w/sqm 550w/sqm 550w/sqm
Average Power 160w/sqm 160w/sqm 160w/sqm 200w/sqm 200w/sqm
Viewing Angle Horizontal 140(+70/-70) deg     Vertical 140(+70/-70)deg
Control way synchronous/asynchronous
Brightness control 256 level
Operating system AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Work humidity 10% ~ 90%
Work temperature ﹣20 ~﹢65℃
