室内固装系列 K

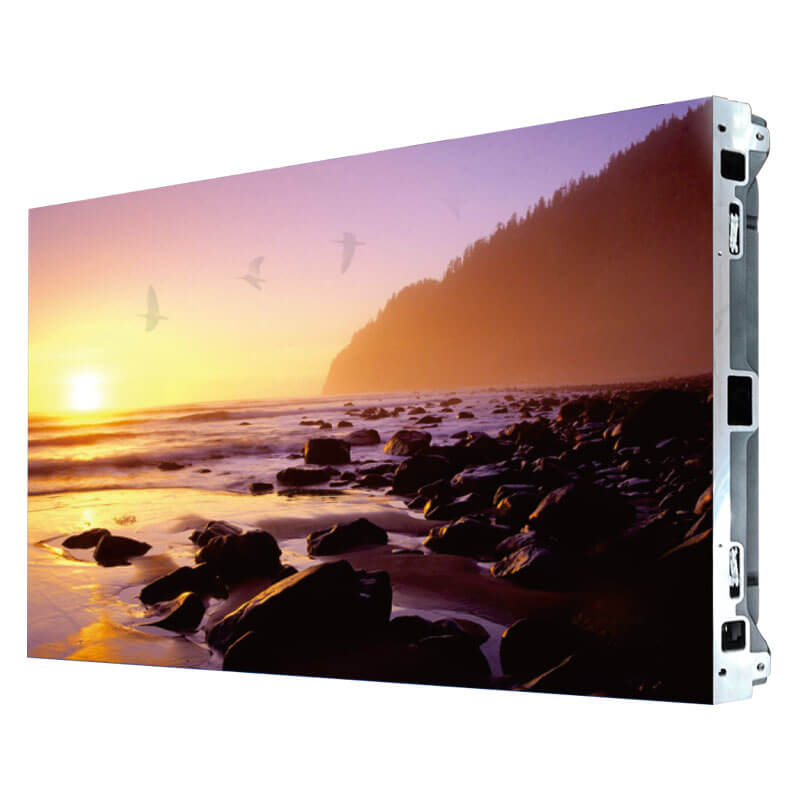

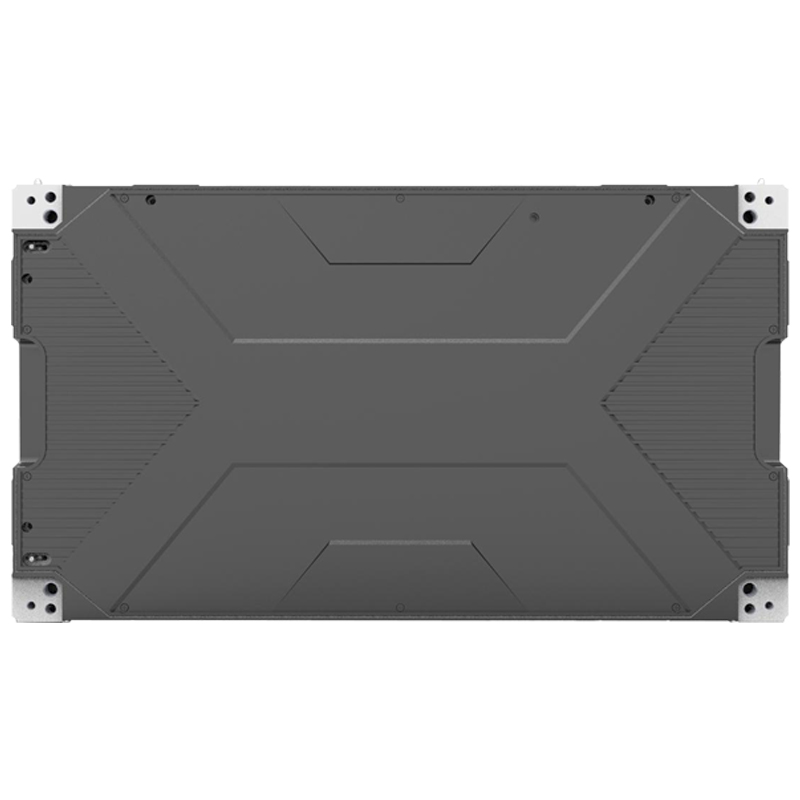

ultra small pixel pitch fixed screen.light weight cabinet design, extremely slim.
easy maintenance and installation without cables.
perfect splicing with a perfect panel ratio of 16:9.
wide application range for business conferenc
Product advantages:
Hard connection
Splicing without cables
Extremely light & slim
2K & 4K standard resolution
High brightness and contrast
High refresh rate
Product Series Model
P1.2
P1.4
P1.5
P1.8
Technical Parameters
室内固装系列 K
| Indoor | ||||
| Pixel Pitch | 0.93 | 1.25 | 1.56 | 1.87 |
| LED lamp | ||||
| Density | 1137777dots/m2 | 640000dots/m2 | 409600dots/m2 | 284444dots/m2 |
| Brightness | 800nits | 800nits | 800nits | 800nits |
| IP rating | IP34 | IP34 | IP34 | IP34 |
| Cabinet Materiel | Die-casting Aluminum | |||
| Scan | ||||
| Module weight | ||||
| Cabinet Weight | 5kg | 5kg | 5kg | 5kg |
| Module size | 150*168.75mm | 150*168.75mm | 150*168.75mm | 150*168.75mm |
| Cabinet size | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm |
| Module pixel | 160*180dots | 120*135dots | 96*108dots | 80*90dots |
| Cabinet pixel | 640*360dots | 480*270dots | 384*216dots | 320*180dots |
| Max Power | 450w/sqm | 450w/sqm | 450w/sqm | 450w/sqm |
| Average Power | 180w/sqm | 225w/sqm | 225w/sqm | 225w/sqm |
| Viewing Angle | ||||
| Control way | ||||
| Brightness control | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||
| Work humidity | ||||
| Work temperature | ||||
