室内固装系列 K-E

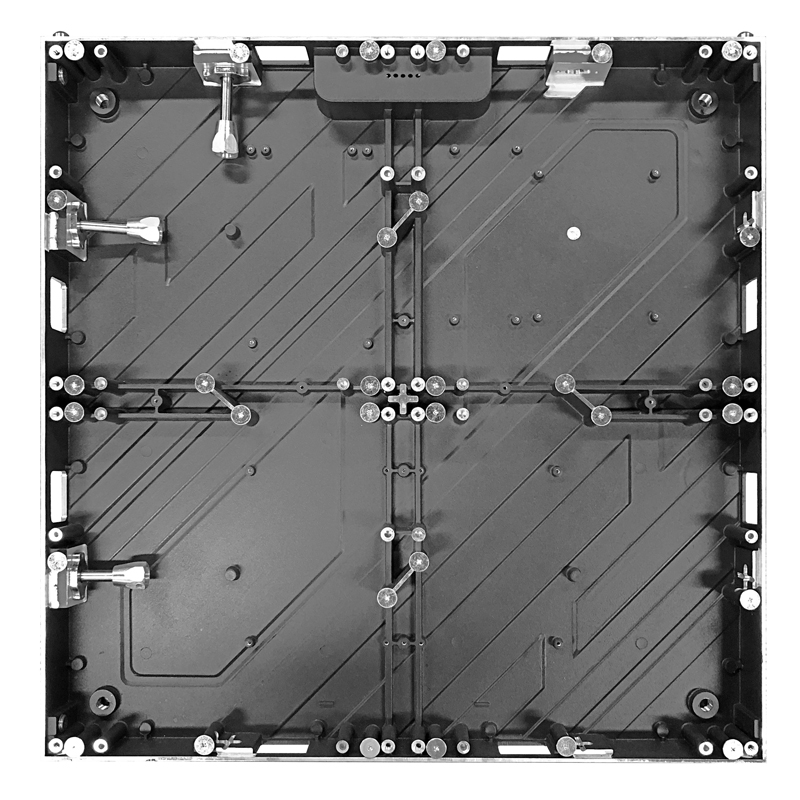

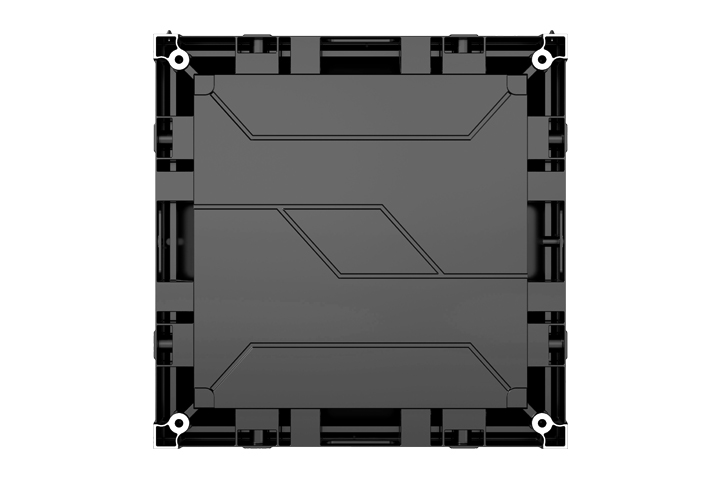

Indoor fixed installationModule front and back service
Simple cabinet design for easier installation, faster and easier maintenance
Same modules size with different pitch, easy to choose.
Fast lock design makes installation more faster.
Product advantages:
High refresh rate,no drag
High gray scale
Wide viewing angle，no color difference
Excellent display effect
Calibration technology available
Hard connection, splicing without cables
Product Series Model
P1.5
P1.8
P2
P2.5
P3
Technical Parameters
室内固装系列 K-E
| INDOOR | ||||||
| Pixel Pitch | 1.579 | 1.67 | 1.875 | 2 | 2.5 | 3 |
| Cabinet Resolution | 304*304 dots | 288*288 dots | 256*256 dots | 240*240 dots | 192*192 dots | 160*160 dots |
| Pixel Density (dots/m²) | 401111dots/m2 | 360000dots/m2 | 284444dots/m2 | 250000dots/m2 | 160000dots/m2 | 111111dots/m2 |
| Cabinet Dimension (W×H×D) | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm | 480*480*65 mm |
| Cabinet Material | Die-casting Aluminum | |||||
| Cabinet Weight (kg) | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
| Color Depth (Bit) | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit | 13 ~14bit |
| Refresh Rate (Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Driver Mode | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver | Constant Current Driver |
| Brightness (nits) | ≥600nits | ≥600nits | ≥600nits | ≥800nits | ≥900nits | ≥900nits |
| Viewing Angle (H°) | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° | 160 ° |
| Viewing Angle (V°) | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° | 140 ° |
| AC Power Input (V) | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V | AC100V~ 240V |
| AC Power Frequency (Hz) | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz |
| Max. Power (W/m²) | 680w/m² | 680w/m² | 570w/m² | 520w/m² | 520w/m² | 550w/m² |
| Avg. Power (W/m²) | 230w/m² | 230w/m² | 200w/m² | 170w/m² | 170w/m² | 190w/m² |
| Operating Temperature (℃ ) | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ | 10℃ ~ 40℃ |
| IP Rating (IP) | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 | Front IP40 / Rear IP30 |
| Installation Type | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation | Fixed / Front Installation |
| Cabinet Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance | Front / Rear Maintenance |
