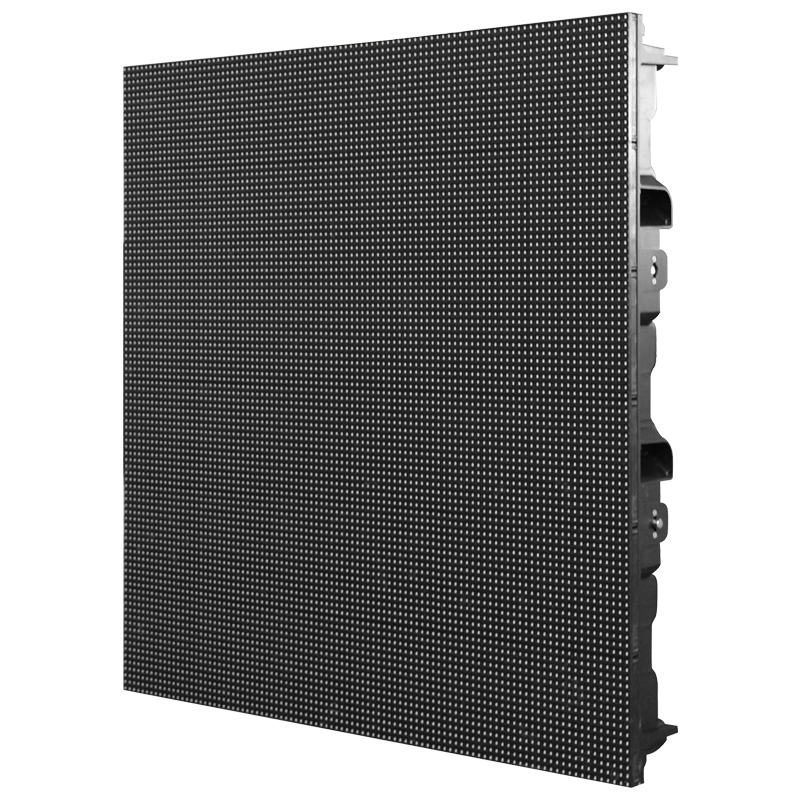

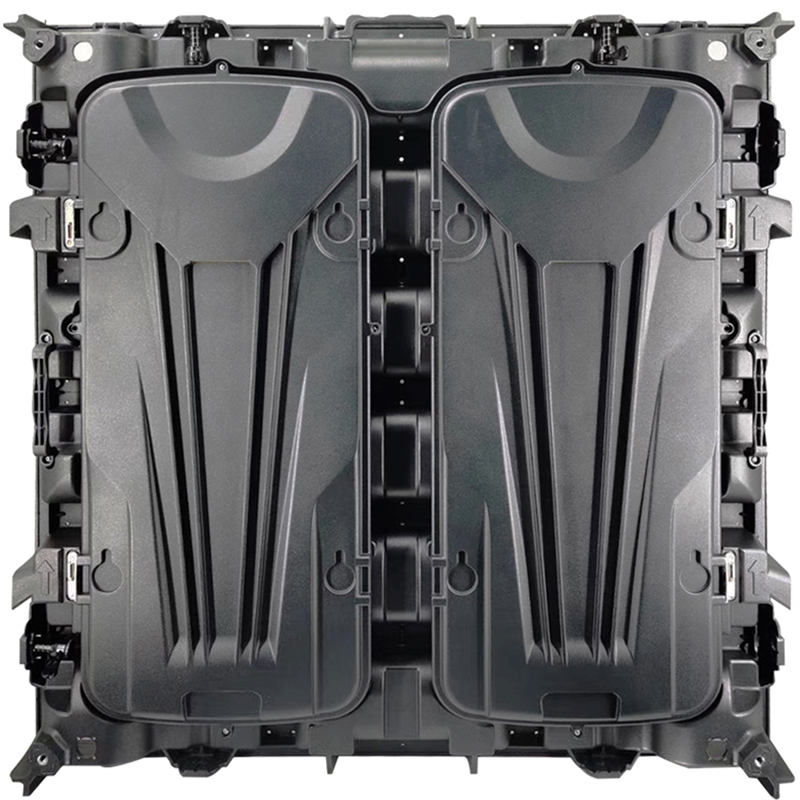

户外固装系列 OA (outdoor aluminum)
户外固定安装压铸铝箱体，重量轻，散热好。
不同点间距的模组设计，易于选择。
低功耗，节能约50％
防紫外线和变形，IP65
产品优势：
稳定的箱体设计
节约能源
颜色和亮度可调
完美的视角
高亮度和对比度
高刷新率
Product Series Model
P4
P5
P5.92
P8
P10
Technical Parameters
户外固装系列 OA (outdoor aluminum)
| Outdoor | |||||
| Pixel Pitch | P4 | P5.33 | P6.67 | P8 | P10 |
| LED lamp | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Density | 62500dots/m2 | 35344dots/m2 | 22500dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Brightness | 6000nits | 6000nits | 6000nits | 6000nits | 6500nits |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | |||
| Scan | 1/10scan | 1/8scan | 1/5scan | 1/4scan | 1/2scan |
| Module weight | 1.6kg | 1.6kg | 1.6kg | 1.6kg | 1.6kg |
| Cabinet Weight | 28kg | 28kg | 28kg | 28kg | 28kg |
| Module size | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
| Cabinet size | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm | 960*960*120mm |
| Module pixel | 80*80dots | 60*60dots | 48*48dots | 40*40dots | 32*32dots |
| Cabinet pixel | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots |
| Max Power | 850w/sqm | 800w/sqm | 850w/sqm | 800w/sqm | 700w/sqm |
| Average Power | 300w/sqm | 380w/sqm | 300w/sqm | 380w/sqm | 240w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | ||||
| Control way | synchronous/asynchronous | ||||
| Brightness control | 256 level | ||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||||
| Work humidity | 10％ ～ 90％ | ||||
| Work temperature | ﹣20 ～﹢65℃ | ||||
