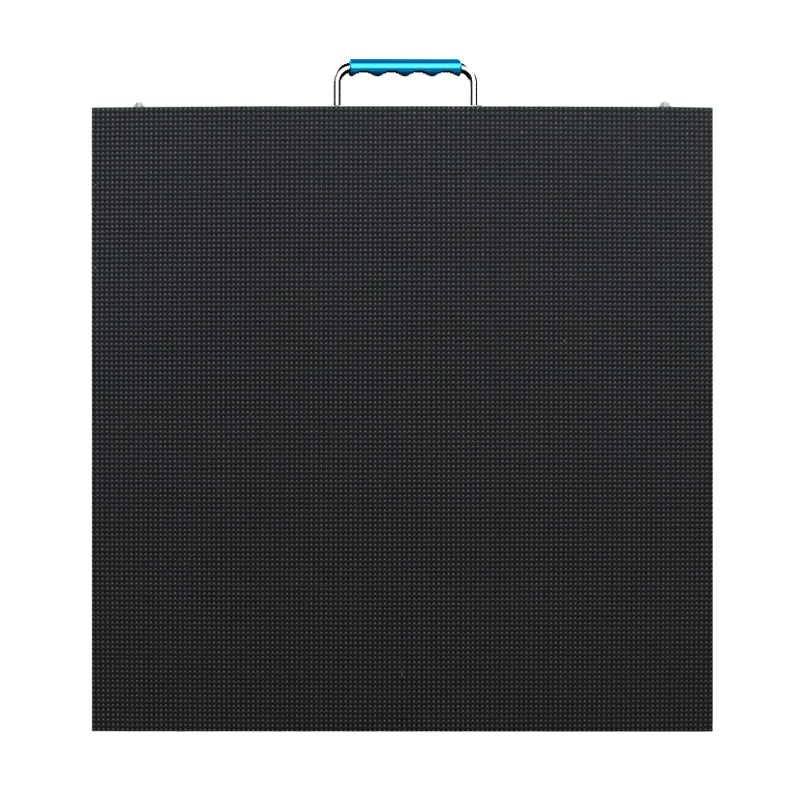

舞美租赁系列 L4
Efficient installation and uninstallation, lower cost: double side automatic locking design, support one person quick installation, use light material to make the cabinet, convenient for transportation, save labor and time cost.Enhanced safety lock design, convenient for one person to operate independently, fast installation is more firm
Anti-knock lamp design, all-round protection to avoid the direct contact between the cabinet and the ground when placing the lamp, the product is more durable
Modular structure, more convenient and faster maintenance

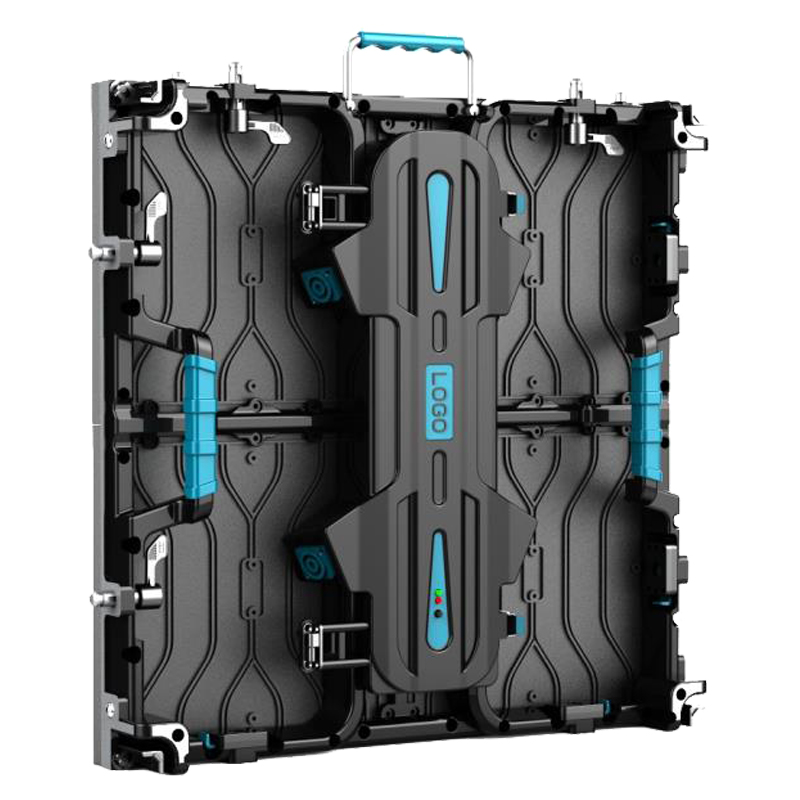

Using the modular structure design, make the module and the power box maintenance more convenient
Super light and thin design, more than 20% lighter than the normal cabinet
High refresh rate, high grayscale, wide color area, as always good color of LIKELED
Seamless screen connection, using positioning column to connect precisely , can be stitched creatively with R3-500*1000 cabinet
Product Series Model
2.6
2.9
3.91
4.81
Technical Parameters
舞美租赁系列 L4
| Indoor | Outdoor | |||||
| Pixel Pitch | 2.604 | 2.976 | 3.91 | 4.81 | 3.91 | 4.81 |
| LED lamp | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Density | 147456dots/m2 | 112896dots/m2 | 65536dots/m2 | 43264dots/m2 | 65536dots/m2 | 43264dots/m2 |
| Brightness | 800-1000nits | 800-1000nits | 800-1000nits | 800-1000nits | ≥ 3500nits | ≥ 3500nits |
| IP rating | IP31 | IP31 | IP31 | IP31 | IP65 | IP65 |
| Cabinet Materiel | Die-casting Aluminum | Die-casting Aluminum | ||||
| Scan | 24scan | 21scan | 16scan | 13scan | 16scan | 13scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8kg | 8kg |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
| Module pixel | 96*96dots | 84*84dots | 64*64dots | 52*52dots | 64*128dots | 52*104dots |
| Cabinet pixel | 192*192dots | 168*168dots | 128*128dots | 104*104dots | 128*128dots | 104*104dots |
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Brightness control | 256 level | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10％ ～ 90％ | |||||
| Work temperature | ﹣20 ～﹢65℃ | |||||
